115XOPT-EXP-EVB

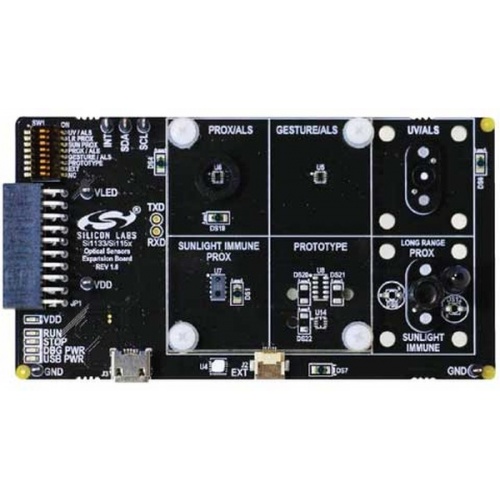

The 115XOPT-EXP-EVB from Silicon Labs is a Si1133/53 multi-use evaluation kit. It makes it easy to evaluate all of the basic optical sensor types that Silicon Labs supplies including basic proximity (prox) and ambient light sensing (ALS), gestures, ultraviolent (UV) light sensing, long range proximity and optimized daylight proximity. It is designed to allow customers to evaluate the Si1133 UV/ALS sensor and other Si1153 sensors. The 115XOPT-EXP-EVB evaluates Si1153-AA09, 2.85 x 4.9mm proximity sensor module with an on-die 940nm bandpass filter for sunlight immunity and an integrated 940nm LED (sunlight immune proximity module) and Si1153-AA09 2 x 2mm proximity sensing chip with an on-die 940 nm bandpass filter for sunlight immunity (long range proximity). The board demonstrates the use of a 5mm dia lens and arrow angle LED.

• Si1133 sensor mounted with a demonstration light diffuser assembly (UV/ALS)
• Si1153-AA00, 2x2mm light sensor chip (proximity/ALS), board uses single 850nm LED for demonstration
• Si1153-AA00 light sensor (gesture/ALS), board uses 3x850nm LEDs spaced 50mm apart for demonstration
• Compatible with Silicon Labs EFM EVBs and optical sensors programmer kit
• Simplicity studio compatible
