ADM00559

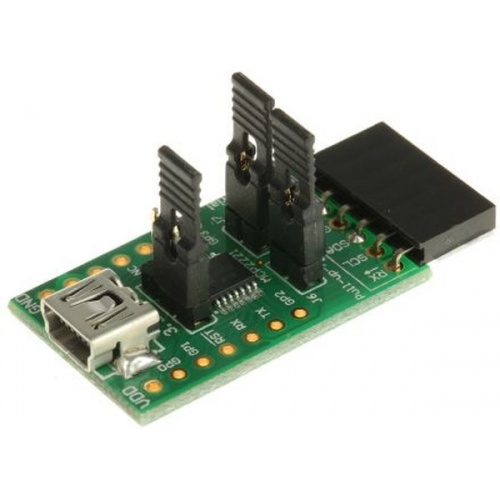

The ADM00559 is a MCP2221 Breakout Module a development and evaluation platform comprised of a single DIP form factor board. The provided supporting software demonstrates the capabilities of the MCP2221 device as USB-to-UART/I²C/SMBus protocol converter. Additionally, these tools provide simple access for I/O control and the ability to establish custom device configuration.

• UART Tx and Rx signals
• I2C/SMBus clock and data lines (SCL and SDA)
• Four GP lines, configurable for GPIO, dedicated or alternate function operation
• User-selectable (by using a jumper) power supply of 3.3 or 5V (up to 500mA)
• DIP form factor (600mil spacing between two 7-pin headers)
• PICkit™ serial analyser header - used for UART and I2C/SMBus communication only
