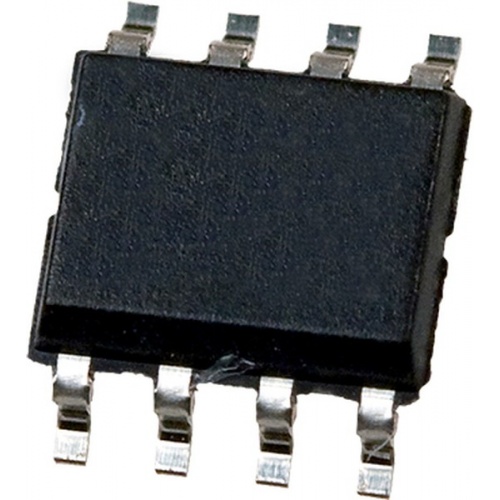

ADUM1200BRZ

The ADUM1200BRZ is a 2-channel Digital Isolator based on iCoupler® technology. Combining high speed CMOS and monolithic air core transformer technology, this isolation component provides outstanding performance characteristics superior to alternatives, such as optocouplers. By avoiding the use of LEDs and photodiodes, iCoupler devices remove the design difficulties commonly associated with optocouplers. The typical optocoupler concerns regarding uncertain current transfer ratios, nonlinear transfer functions and temperature and lifetime effects are eliminated with the simple iCoupler digital interfaces and stable performance characteristics. The need for external drivers and other discrete components is eliminated with these iCoupler products. Furthermore, iCoupler devices consume one-tenth to one-sixth the power of optocouplers at comparable signal data rates. The ADuM1200 isolator provides two independent isolation channels in a variety of channel configurations and data rates.

• Narrow body
• Low power operation
• Bidirectional communication
• 3/5V Level translation
• High temperature operation
• High data rate (DC to 25Mbps (NRZ))
• 3ns Maximum pulse width distortion
• 3ns Maximum channel-to-channel matching
• High common-mode transient immunity (>25kV/µs)
