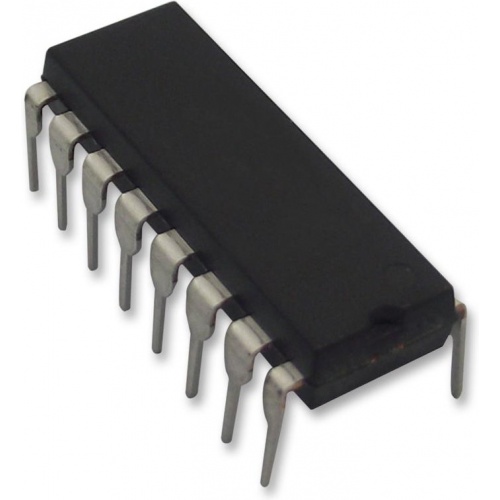

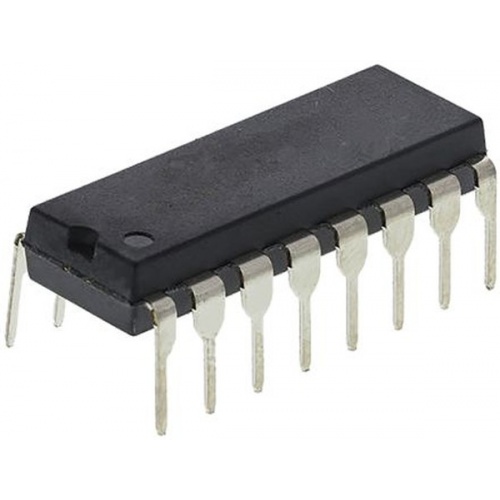

CD4503BE

Цена 52.91 - 109.36 руб.

Описание CD4503BE

The CD4503BE is a Hex Non-inverting Buffer with 3-state outputs having high sink and source-current capability. Two d...

The CD4503BE is a Hex Non-inverting Buffer with 3-state outputs having high sink and source-current capability. Two disable controls are provided, one of which controls four buffers and the other controls the remaining two buffers.

• 1 TTL-load output drive capability
• 2 Output-disable controls
• Pin compatible with industry types MM80C97, MC14503 and 340097
• 5/10/15V Parametric ratings
• Meets all requirements of JEDEC tentative standard no. 13B
• Green product and no Sib/Br

Серия	4000
Технология	cmos
Тип	buffer/line driver
Полярность	неинвертирующий
Число элементов	2
Количество Бит на Элемент	2 и 4
Тип выхода	push-pull(3-state)
Выходной ток высокого уровня	-14.1IOH (мА)
Выходной ток низкого уровня	23IOL (мА)
Напряжение питания	3…18В
Рабочая температура	-55…+125°C
Корпус	dip-16(0.300 inch)
Вес	2.1г
