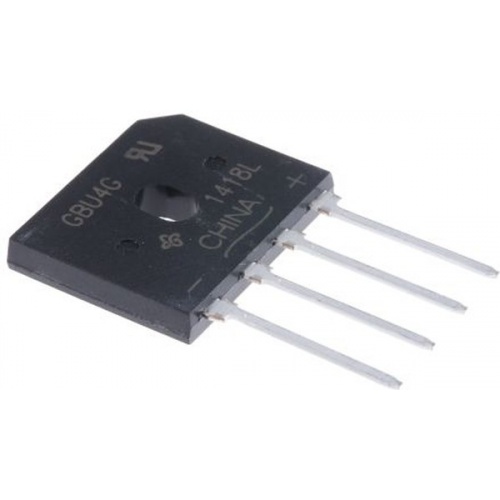

GBU4G-E3/51

The GBU4G-E3/45 is a 4-pin single-phase glass passivated Bridge Rectifier Diode with high surge current capability. It is used in general purpose AC/DC bridge full wave rectification for monitor, TV, printer, adapter, audio equipment and home appliances applications.

• UL94V-0 Flammability rating
• Ideal for printed circuit board
• 1500VRMS High case dielectric strength
• Solder dip 275°C maximum 10s, per JESD 22-B106
• 280V Maximum RMS bridge input voltage
• -55 to 150°C Operating junction temperature range
