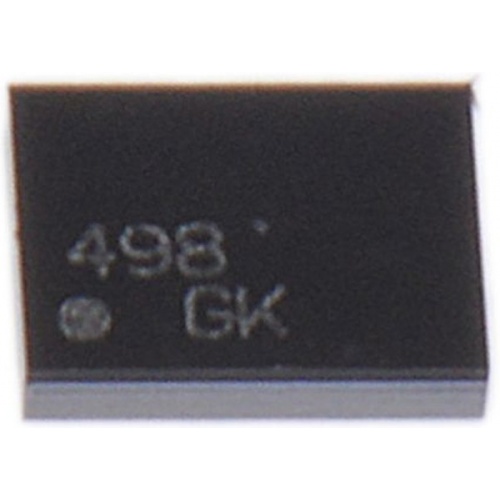

HDC1008YPAT

The HDC1008YPAT is a digital Humidity Sensor with integrated temperature sensor that provides excellent measurement accuracy at very low power. The device measures humidity based on a novel capacitive sensor. The humidity and temperature sensors are factory calibrated. The innovative WLCSP (Wafer Level Chip Scale Package) simplifies board design with the use of an ultra-compact package. The sensing element of the sensor is placed on the bottom part of the device, which makes the sensor more robust against dirt, dust and other environmental contaminants.

• 0 to 100% Relative Humidity (RH) Operating Range
• 14-bit Measurement Resolution
• ±4% Relative Humidity Accuracy
• -20 to 85°C Operating Temperature Range
• ±0.2°C Temperature Accuracy
• 200nA Sleep Mode Current
• 1.2µA at 1sps, 11-bit RH and Temperature measurement average supply current
• Tiny 2 x 1.6mm Device Footprint
• I²C Interface
• Green Product, No Sb/Br

Датчик влажности
Кол-во в упаковке: 250, корпус: DSBGA8, АБ
