103340

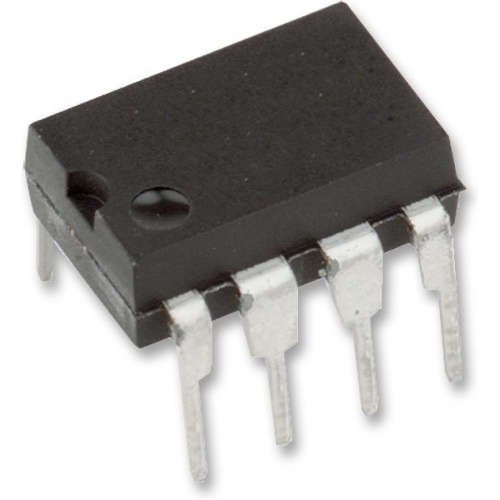

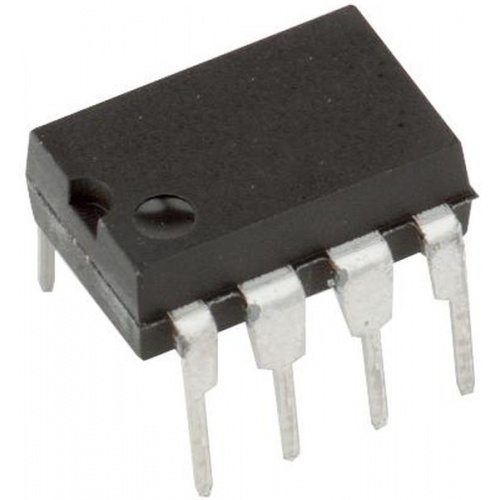

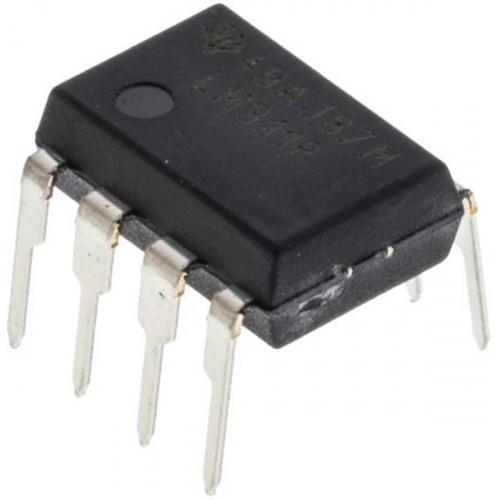

LM311P
Цена 0.01 - 78.00 руб.
Описание LM311P
LMx11 family Single Comparators The LM111, LM211 and LM311 from Texas Instruments are differential input voltage comp...
LMx11 family Single Comparators
The LM111, LM211 and LM311 from Texas Instruments are differential input voltage comparators with a wide operating voltage range and 200 ns response time. The inputs of these devices can be isolated from system ground and the uncommitted outputs can drive loads referred to either supply rail or ground. These single comparators are provided with balancing and strobe capability.
The LM111, LM211 and LM311 from Texas Instruments are differential input voltage comparators with a wide operating voltage range and 200 ns response time. The inputs of these devices can be isolated from system ground and the uncommitted outputs can drive loads referred to either supply rail or ground. These single comparators are provided with balancing and strobe capability.
| Количество каналов | 1 |
|---|---|
| Напряжение питания | 3.5…30В |
| Время задержки | 115нс |
| Ток потребления | 7.5мА |
| Температурный диапазон | 0…70С |
| Тип корпуса | dip8 |
| Напряжение компенсации | 7.5мВ |
| Вес | 1г |
В разработке.
Характеристики, параметры
Скачать файл-
Наименование Отгрузка, дней Наличие, шт. Цена, руб Нужное к-во, шт. LM311P
1-1 по запросу 0.00 LM311P
4-6 1817 37.06 LM311P
4-5 по запросу 0.01 LM311P
4-7 420 38.68 LM311P
5-6 467 32.94 LM311P
7-10 14 78.00
