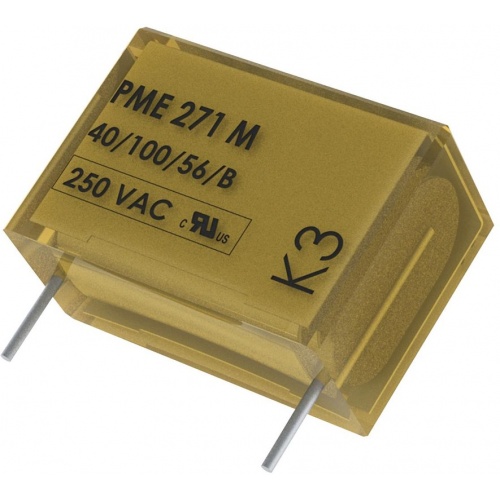

PME271MB6100MR30

The PME271M Series is constructed of multilayer metallized paper encapsulated and impregnated in self-extinguishing material meeting the requirements of UL 94 V-0.Typical applications include worldwide use in electromagnetic interference suppression in all X2 and across-the-line applications.

• Approvals: ENEC, UL, cUL / Rated voltage: 275 VAC 50/60 Hz
• Capacitance range: 0.001 - 0.6 µF / Capacitance tolerance: M = ±20% (for C <= 0.1 µF), K = ±10% (for C > 0.1 µF) / Lead spacing: 10.2 - 25.4 mm
• Climatic category: 40/110/56, IEC 60068-1 / Operating temperature range of -40˚C to +110˚C
• Tape and reel in accordance with IEC 60286-2
• RoHS Compliant and lead-free terminations
• High dV/dt capability
• Excellent self healing properties
• High dV/dt capability
